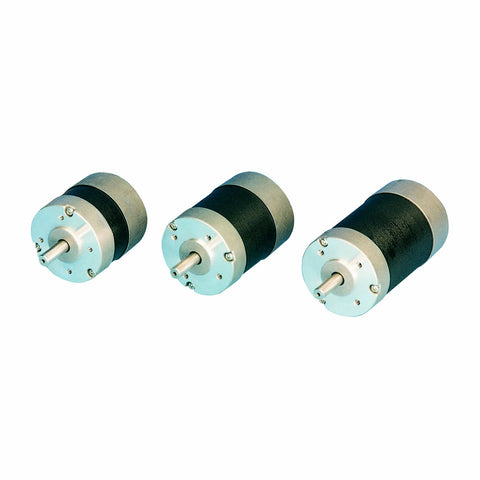

MB057GA BLDC Motor

These Exmek Electric BLDC motors are a great match to the TRINAMIC family of high current BLDC motor modules.

Specifications

Features

  • 4pole with 3phase winding
  • Continuous Torque from 0.14 to 0.48Nm
  • Speed up to 2900 rpm, High Dynamic performance
  • Hall effect commutation (120 degree), very low cogging torque
  • Ins. Class B, higher insulation and protection optional
  • Flange Mounting According IEC 34-7
  • NEMA 23 flange available
  • CE approved
  • RoHS compliant

We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request. These motors are available in both single and dual shaft options.

Available models

MB057GA100, l=65mm, 2600rpm, 0.14 Nm

MB057GA200, l=85mm, 2800rpm, 0.27 Nm

MB057GA300, l=105mm,2800rpm, 0.39 Nm

MB057GA400, l=125mm, 2900rpm, 0.48 Nm
