STANDARD TARGET

CambridgeIC's standard target may be used with any type of sensor, rotary or linear. Its inductor is formed by a coil wound around a ferrite rod, for high Q-factor and a precisely shaped near field.

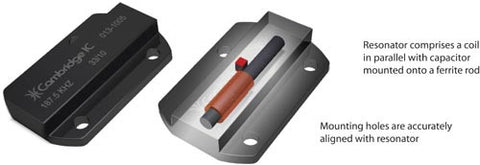

exterior and interior of a target
Features

  • Non contact: wireless and wear free
  • Compact
  • Sealed
  • For both linear and rotary position sensing
  • Holes for alignment and/or mounting

Performance

  • Linear magnetic axis alignment ±0.1mm
  • Rotary magnetic axis alignment ±0.2°
  • Typical Q-factor 115
  • Operating Temperature -20°C to +85°C (contact us for extended temperature)
  • Max rotation speed 6000rpm
  • Max linear acceleration 4000ms-2

nominal dimensions




Target Downloads

Target Datasheet
