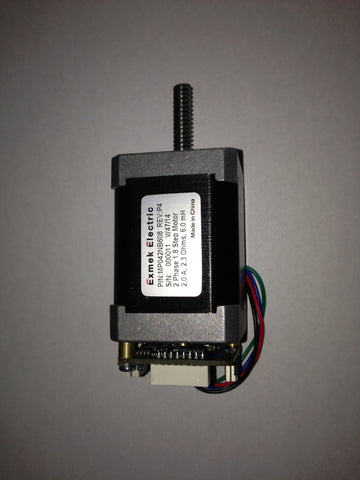

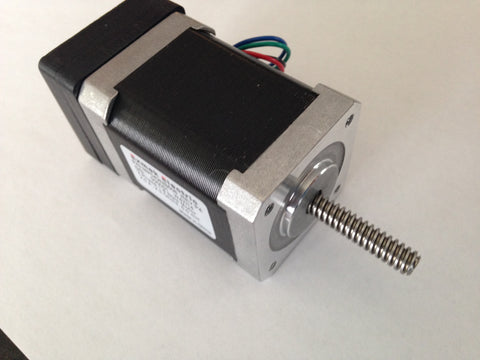

The MP042NB610-1140 motor is built to the same specifications as the Trinamic PANdrive PD-1140.  The motor features a 1/4" - 16 RH acme screw with options for 1 or  2 starts.  The standard acme screw length is 30mm but custom lengths are available upon request.   Replacing the motor shaft with the screw eliminates the need for expensive motor coupling solutions.

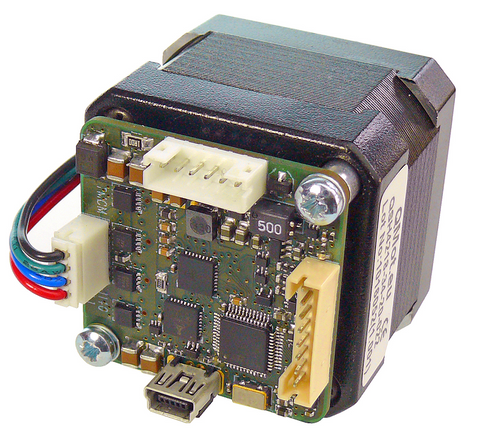

The PANdrive family is a mechatronic solution including a 42mm flange stepper motor, a controller board and a sensOstep™ encoder. It can be controlled via serial interface or operated in standalone mode. Power supply, external encoder, interface and I/Os can be connected with JST connectors.

With the advanced stallGuard2™ the motor load can be detected with high resolution. The outstanding coolStep™ technology for sensorless load dependent current control allows efficient motor operation.

The PC based software development environment TMCL-IDE for the Trinamic Motion Control Language (TMCL™) can be downloaded free of charge from the TRINAMIC website.
